Services such as conformal coating or special testing may be added to jobs. These services will be indicated on the marketplace and jobs and will contain links to the relevant instructions.
Additional Service Requirements on Jobs

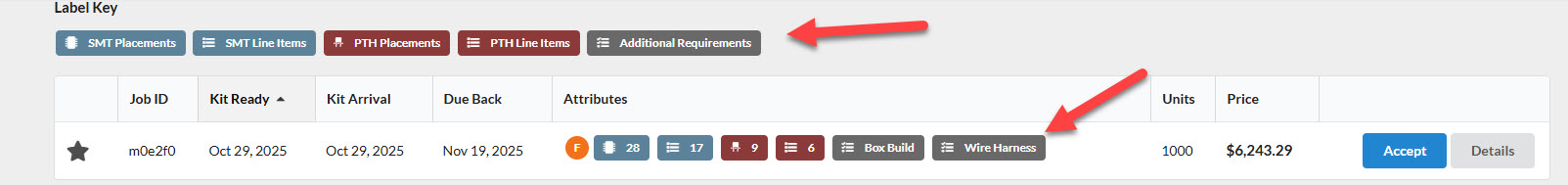

Jobs will now have the additional services included on the job both in the marketplace and on the job screen.
The payout and time for performing the additional services will be included in the total price and payout of the job.

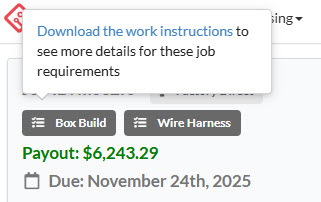

On the job, the additional services indicators will also give you a link to download the work instructions for the job so you can see what needs to be done as part of the service.

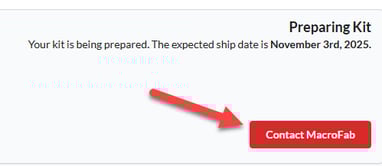

If you don't see work instructions linked, contact MacroFab using the "Contact MacroFab" button on the top right of the job screen.
Available Additional Services
MacroFab offers several optional services in addition to standard PCB assembly. Customers can add these to their orders provided they give detailed instructions.
Box Build
Box Build refers to secondary or mechanical assembly beyond the PCB. This may include installing boards into enclosures, attaching brackets or mounts, adding battery packs, or performing final system integration.
Conformal Coating
Conformal Coating is a protective chemical layer applied to PCBs to guard against moisture, dust, chemicals, and temperature extremes. It extends product reliability in harsh environments.
Testing
Testing services validate that assemblies work as intended. Options may include functional test (FCT), in-circuit test (ICT), or customer-provided procedures. Testing ensures that assemblies meet performance requirements before shipment.
Labels
Labels are applied for traceability and identification. This can include barcodes, serialization, customer-specific stickers, or compliance labels.
Custom PCBA Instructions
Custom PCBA Instructions capture unique process requirements beyond standard assembly. Examples include firmware programming, special soldering requirements, component placement variations, or other customer-specified instructions.
Wire Harness
Wire Harness assembly includes cable assemblies, wiring looms, or harnesses that connect PCBs to other modules or components.
Press-Fit Assembly
Press-Fit Assembly involves installing press-fit connectors or components that are mechanically secured into plated through-holes without soldering.
